snowcontrol system extensions
Our snowcontrol snowload measuring system can be extended anytime with further sensors for building surveillance. All detectors send alarm notifications via SMS or e-mail on exceeding the customer-configured hazard limits.
We will be happy to advise you personally 089 / 716 751 06

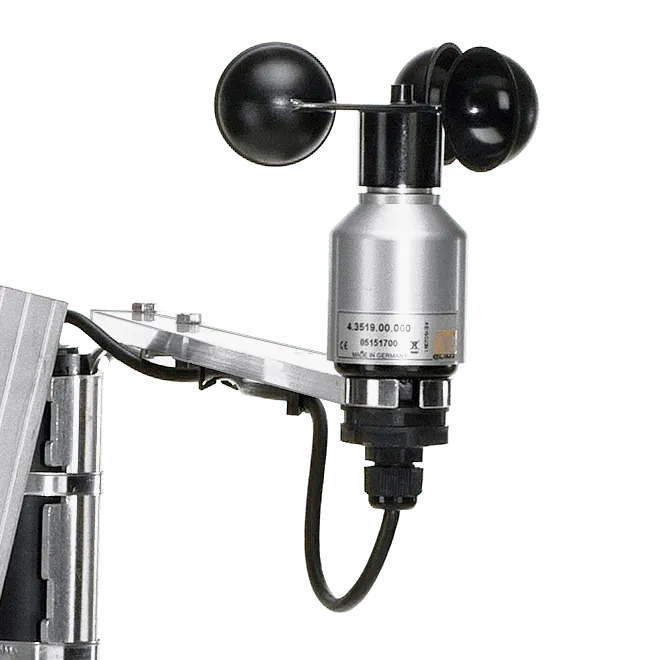

Wind gauge
By permantly monitoring the wind conditions on the roof, you can react duly in case of emergency. Warning limits can be configured individually.
Technical data
- Range: 0,5 - 50 m/s
- Accuracy: +/-3% of value or +/-0,5 m/s
- Current consumption: < 1mA
- Operating temp.: -40 to +70 °C
- Protection class: IP 55
Precipitation transmitter
This sensor precisely captures the amount of precipitation. In cases of emergency the system sends alarm notifications via SMS or e-mail. Warning limits can be configured individually, so that you can react duly in case of heavy rainfall.
Technical data
- Measuring principle: Tipping bucket
- Resolution: 0,1 mm NS
- Collecting area: 200 cm²
- Intensity: max. 11 mm/min.
- Operating temp.: -25 bis +60 °C
(incl. heater)

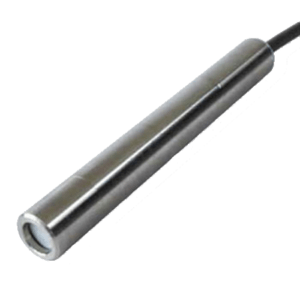

Immersion probe
Immersion probes are used for monitoring downpipes, which can be blocked by foliage, preventing rain or melt water to drain off properly and quickly becoming a danger to structural safety. In cases of emergency the immersion probe sends alarm notifications via SMS or e-mail.
Technical data
- Accuracy: +/-0,5% of measuring range
- Range: 0..600 mbar
- Resolution: better than 0,002% of range

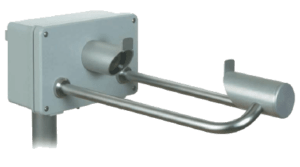

Laser precipitation monitor
The laser precipitation monitor measures and detects all various kinds of precipitation like hail, drizzle, rain, snow as well as mixed precipitation. The device determines the nature, intensity and spectrum of precipitation.
Technical data
on request
